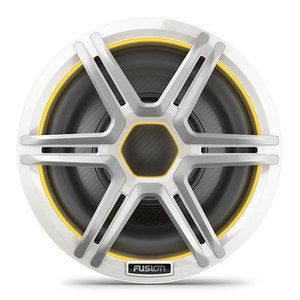

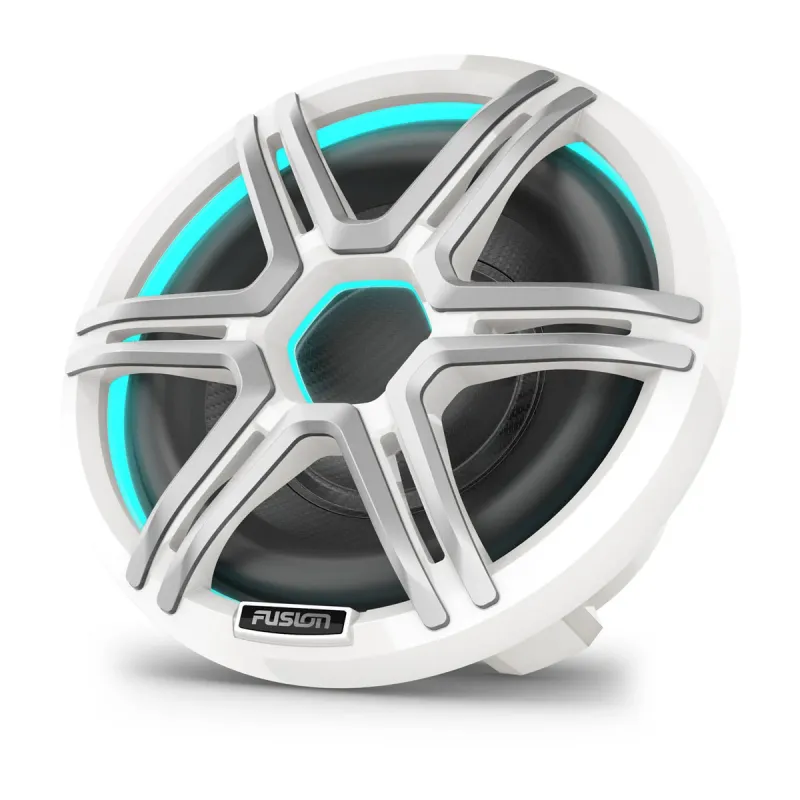

Fusion 12in Apollo LED Sub w/ Sports White

General
Sizes	10"/12"
Color	Sports White or Sports Gray
Physical dimensions (Diameter)	10": 10.83" (275 mm) 12": 14.02" (356 mm)
Physical dimensions (Depth)	10": 6.92" (175.8 mm) 12": 9.77" (248.2 mm)
Weight	10": 13.4 lbs (6.1 kg) 12": 27.8 lbs (12.63 kg)
Water and dust rating	IP66/IP67
Speaker type	Subwoofer
Continuous power handling (RMS)	10": 300 W 12": 700 W
Sensitivity (SPL @ 1 W/1 m)	86 dB
Frequency response (+/- 3 dB)	10": 30 Hz-2 kHz 12": 20 Hz-2 kHz
Nominal impedance	4 Ω
Recommended amplifier power (RMS)	10": 50-300 W 12": 200-700 W
LED lighting	yes - CRGBW (5 colors)
LED supply voltage	10.8-16 VDC
LED Load Current @ 14.4 VDC (max)	10": 190 mA per color 12": 270 mA per color
Operating temperature range	32° to 122° F (0° to 50° C)
Cone material	Polypropylene Cone with Rubber Surround
Warranty	3 years

Electrical Features
Compass-safe distance	10": 13.45 ft (410 cm) 12": 19.03 ft (580 cm)

Connections
Speaker connections	5.9" (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25" (6.3 mm) positive and 0.25" (6.3 mm) negative)
LED connection	5.9" (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground)

Mounting Dimensions
Mounting diameter clearance	10": 8.78" (223 mm) 12": 11.85" (301 mm)
Mounting depth clearance	10": 5.31" (135 mm) 12": 7.80" (198 mm)
Frontal grille protrusion	10": 1.77" (45 mm) 12": 2.17" (55 mm)
